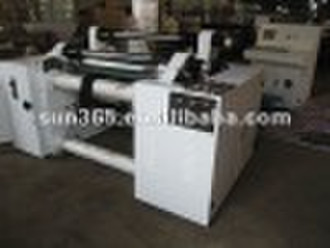

SLS-Surface Slitting Machine

SLS-Surface Slitting Machine Description surface loading slitting machine is a vertical split cutting equipment with high precision and sensibility. Its adjustable working speed is 0 to 160 per minute, and it is equipped with converter speed regulator. It adopts constant tension magnetic brake to feed rolls, automatically counting and stopping, photoelectric rectifying deviation. it also adopts two magnetic clutches and main machine to control the operation in a linkage way, with dual purpose, i. E. Pneumatic central rolling touching the surface and it is hard to knot each other because the double shafts are to collect rolls. The machine is applied to spilt cut paper. Plastic film, al-foil and insulator materials. Main technical Max. Width of roll material 600-1600mm Max. Diameter of roll material 800mm Internal diameter of rolling paper core 25mm 76mm Max. Width of splitting 500mm Min. Width of splitting 5mm Speed 0-160m/min(frequency speed governing) Electrical machinery power 3kw Overall dimension 1800x1700x1100mm Weight 2000kg
